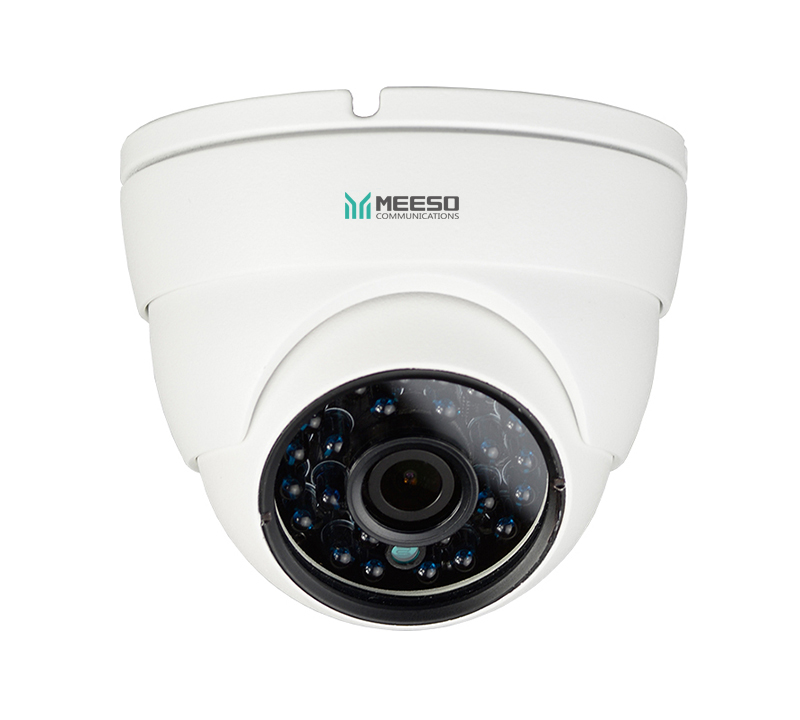

PB-TACD1241A
★ TVI/CVI/AHD/Analog 4 in 1
★ Transfer HD video over 75-3 or similar cable at least 500m
★ 30m night vision
★ Fixed lens 3.6mm
★ 30FPS @ 1080P
★ 3DNR for the higher definition and the better image restitutor
★ Realtime video without compression
Camera | |
Image Sensor | Sony IMX323 Progressive Scan CMOS |
Processor | NVP2441 |
Max Pixels | 2.0MP 1920*1080 |
fr |
30fps |
Min Illumination | 0.1lux@F1.2 AGC on 0 lux with IR on |
Lens | 3.6mm 2MP |
LED | 24pcs LEDs IR Range 30m |
IR-Cut | YES |
OSD | Optional |
Shutter Speed | 1/25 ~ 1/100000 second |
S/N Ratio | >58db |
Video | |
Scanning system | Progressive |
Synchronization | Internal |
Noise Reduction | 3D-NR |
BLC | Auto |
White Balance | Auto |
Gain Control | Auto |
Interface | |
Video Output | 1Vp-p 75ohm BNC |
Transmission | 500 meters(75-3) |
Audio Output | - |
General | |
Bracket | 3-axis manual adjustable bracket |
Installing Type | Ceiling Mount Wall Mount |
Housing Material |
me |
Ingress Protection | - |
Working Temperature | -20℃ ~ 60℃ |
Humidity | <95% |
Weight | 500g |
Size |
