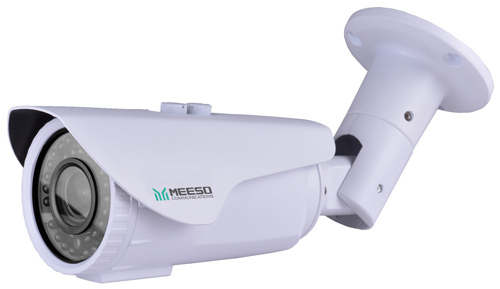

MS-TACD2274A
MS-TACD2274A
-
Meeso offers you a complete IP solution, from camera to recorder. We also offer reliable accessories for you to complete the whole system.
-
28 strict standard for quality control management, from engineering, trial production to massive production.
-
100% 48 hours of aging test before delivery, when you have the product in hand, it's 100% taken good care of.
Product IntroductionSpecificationsAccessoriesRelevant DataDownload
★ TVI/CVI/AHD/Analog 4 in 1
★ Transfer HD video over 75-3 or similar cable at least 500m
★ 40-50m night vision
★ Varifocal lens 2.8-12mm
★ 30FPS @ 1080P
★ 3DNR for the higher definition and the better image restitutor
★ Realtime video without compression
★ 3-axis adjustable bracket adapt to ceilling mount and wall mount
★ AWBAEAGCBLC3D-NR
★ Dual ICR filters Day/night mode auto switching
★ Backward-compatible D1/960H OSD adjustable
★ Backward-compatible D1/960H OSD adjustable
★ Totally Plug and Play
★ DC12V
★ DC12V
| Camera | |
| Image Sensor | Sony IMX323 Progressive Scan CMOS |
| Processor | NVP2441 |
| Max Pixels | 2.0MP 1920*1080 |
|
fr |
30fps |
| Min Illumination | 0.1lux@F1.2 AGC on 0 lux with IR on |
| Lens | 2.8-12mm 2MP |
| LED | 42pcs LEDs IR Range 30m |
| IR-Cut | YES |
| OSD | Optional |
| Shutter Speed | 1/25 ~ 1/100000 second |
| S/N Ratio | >58db |
| Video | |
| Scanning system | Progressive |
| Synchronization | Internal |
| Noise Reduction | 3D-NR |
| BLC | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Interface | |
| Video Output | 1Vp-p 75ohm BNC |
| Transmission | 500 meters(75-3) |
| Audio Output | - |
| General | |
| Bracket | 3-axis manual adjustable bracket |
| Installing Type | Ceiling Mount Wall Mount |
| Housing Material |
me |
| Ingress Protection | - |
| Working Temperature | -20℃ ~ 60℃ |
| Humidity | <95% |
| Weight | 800g |
| Size | |
