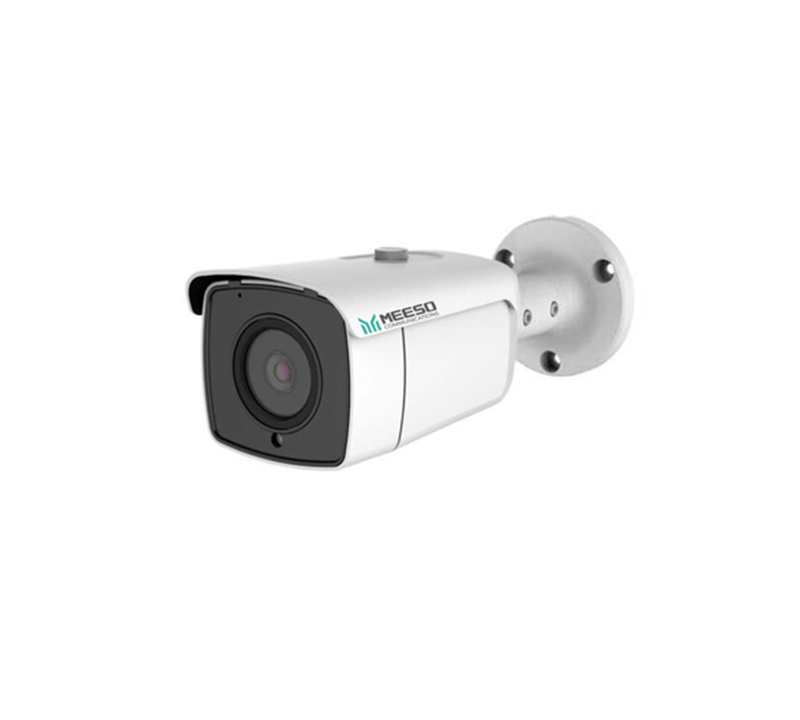

MS-NW1253SIP

MS-NW1253SIP

  • Meeso offers you a complete IP solution, from camera to recorder. We also offer reliable accessories for you to complete the whole system.
  • 28 strict standard for quality control management, from engineering, trial production to massive production.
  • 100% 48 hours of aging test before delivery, when you have the product in hand, it's 100% taken good care of.

Product IntroductionSpecificationsAccessoriesRelevant DataDownload


★  1/2.9" Sony Low Lux IMX323 CMOS sensor

★  Support Meeso AI function: Crossline Detection Intruder Area Detection object Detention object Missing.

★  Main stream 1920*1080@25fps; Sub stream D1@25fps;

★  Support ONVIF; Support Third-party NVR;

★  Support for mobile video surveillance(iOS android);

★  Support Web CMS Mobile App;

★  Support cloud service network penetration alarm information pushed to phone etc

Camera
Image Sensor  1/2.9" Sony Low Lux IMX323 Progressive Scan CMOS
Processor Hisilicon 3516C V300
Resolution 2.0MP 1920*1080
frame Rate 25fps
Lens 3.6mm Fixed Lens
IR Led 18pcs 30m Night Vision
Min Illumination 0.07Lux @ (F1.2 AGC ON) 0 Lux with IR
Shutter Time 1/25 ~ 1/100000 second
Video
Encode H.265+ Compression
Stream Main Stream 2Mbps~6Mbps Sub Stream 512kbps~2.5Mbps (adjustable)
Image Capture JPEG format (picture definition is same with video)
Noice Reduction 3D-NR
AGC/AWB Yes
Audio/Alarm
Audio Buildin Microphone G.711A 64Kbps
Alarm I/O Optional
Network
Ethernet Adaptive 10/100M RJ45
WiFi/3G Optional
PoE(IEEE802.3af) Yes
Water Mark Yes
Alarm Event Intelligent Analytics Motion Detect Video Loss Video Cover Network Abnormal
Recording Mode Manual Schedule Motion Detect Network Abnormal
Interface
SD Slot Optional
RS485 -
Audio/Alarm Opional
General
Operating Conditions -30℃ ~ 60℃
Power Supply 12V DC
Weather Proof IP66
IR Range 30m
Weight 500g/pc
