2MP H.265 IPC

current position：Meeso Official > Products > H.265 Analytic IPC > 2MP H.265 IPC >

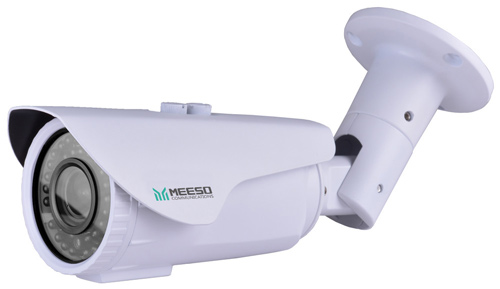

MS-NW2274SIP-L

MS-NW2274SIP-L

  • Meeso offers you a complete IP solution, from camera to recorder. We also offer reliable accessories for you to complete the whole system.

  • 28 strict standard for quality control management, from engineering, trial production to massive production.

  • 100% 48 hours of aging test before delivery, when you have the product in hand, it's 100% taken good care of.

Product IntroductionSpecificationsAccessoriesRelevant DataDownload


★  1/2.9" Sony IMX291 CMOS sensor

★  Main stream 1920*1080@25fps; Sub stream D1@25fps;

★  Support Video Analytics cross line detection intruder area detection object missing detection object detent detection image blur scene change detection;

★  Support ONVIF; Support Third-party NVR;

★  Support for mobile video surveillance(iOSandroid);

★  Support Web CMS Mobile App;

★  Support cloud service network penetration alarm information pushed to phone etc

Camera
Image Sensor  1/2.9" Sony Starlight IMX291 Progressive Scan CMOS
Processor Hisilicon 3516C V300
Resolution 2.0MP 1920*1080
frame Rate 25fps
Lens 2.8-12mm Manual Lens
IR Led 42pcs 30-40m Night Vision
Min Illumination 0.07Lux @ (F1.2 AGC ON) 0 Lux with IR
Shutter Time 1/25 ~ 1/100000 second
Video
Encode H.265 Compression
Stream Main Stream 2Mbps~6Mbps Sub Stream 512kbps~2.5Mbps (adjustable)
Image Capture JPEG format (picture definition is same with video)
Noice Reduction 3D-NR
Analytics Cross line detection intruder area detection object missing detection object detent detection image blur scene change detection;
Audio/Alarm
Audio G.711A 64Kbps
Alarm I/O Optional
Network
Ethernet Adaptive 10/100M RJ45
WiFi/3G Optional
PoE(IEEE802.3af) Yes
Water Mark Yes
Alarm Event Motion Detect Video Loss Video Cover Network Abnormal
Recording Mode Manual Schedule Motion Detect Network Abnormal
Interface
SD Slot Optional
RS485 -
Audio/Alarm Opional
General
Operating Conditions -30℃ ~ 60℃
Power Supply 12V DC
Weather Proof IP67
IR Range 30-40m
Weight 900g/pc


MS-NW2274SIP-L

H.265 Analytic IPC
